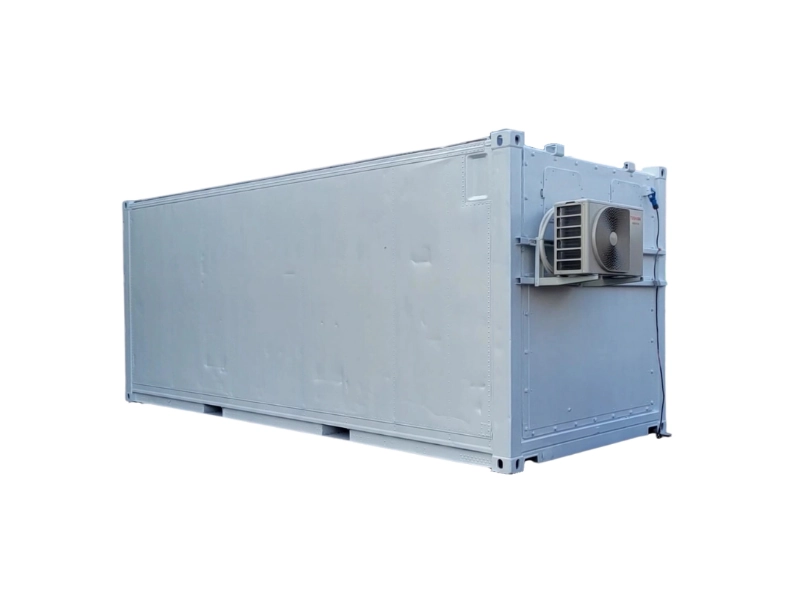

Isothermal container:
- Refrigerated container from which the refrigeration unit has been removed and replaced by an insulated sandwich panel

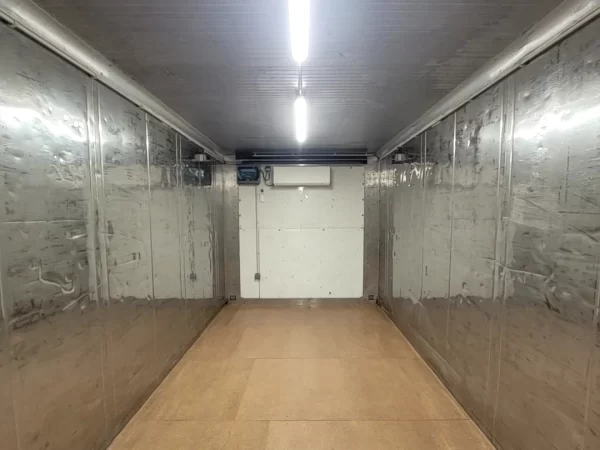

- Interior surfaces in stainless steel and aluminium (easy to clean)
- Container structure in Corten steel, highly resistant to corrosion
- Walls, floor and ceiling thermally insulated by 7 cm thick sandwich panels (polyurethane foam enclosed in aluminium sheets)
- Watertight container, original double doors in working order, structural integrity OK
- Refurbishment of the second-hand refrigerated container: anti-corrosion treatment of the entire structure & all worked areas
- Polyurethane-based two-component metallic repaint “PU 950” – colour of your choice (RAL colour chart)
After years of use and ocean travel around the globe, second-hand containers naturally show signs of wear: impact marks and dents in particular, which will remain visible after repainting.
Internal dimensions: Length: 5.45 m | Width: 2.29 m | Height: 2.27 m
External dimensions: Length: 6.06 m | Width: 2.44 m | Height: 2.59 m
Volume: 28 m³ | Weight: approx. 3 T after modification | Floor area: 14 m²
Insulated service door:
- Fitted on 5 x 10 cm tubular steel reinforcements, anti-corrosion treatment
- Steel service door, clear dimensions 90 x 205 cm
- Opening direction of your choice
- Stainless steel door threshold
- 1-point secure locking mechanism
- Polyurethane foam insulation
Electrical installation:
- Electrical network compliant with NF C 15-100 & UTE C 15-201 standards
- Standard single-phase – 220 V power supply
- Electrical outlets
- Distribution box (waterproof), busbar, 16 A circuit breakers, 300 mA RCDs
- Lighting: 2 x 4,000-lumen LED tubes, dimensions 20 x 60 cm, with switch
- Single-phase P17 outlet: “Maréchal” plug & play module connection
- Concealed integrated wiring distributed via cable ducts
Floor
- Original floor retained: T-section aluminium rails.
- 18 mm HYDRO panel overlay
- Triple marine varnish
- Non-slip PVC floor covering
Air conditioning:

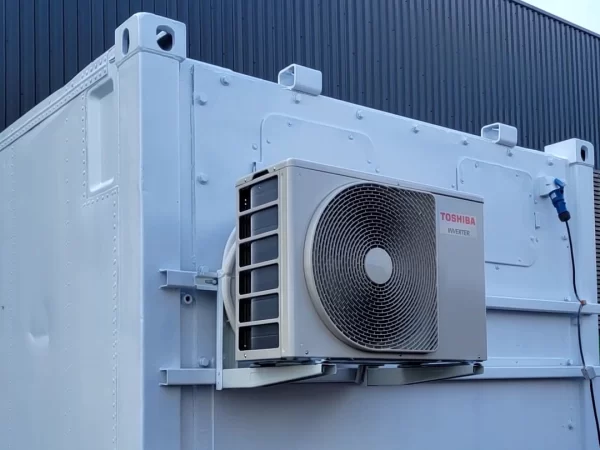

- Reversible air conditioning – Heat pump – TOSHIBA 2.5 kW
- Wall-mounted unit, model KAZUMI R32 Inverter
- External unit mounted separately on a bracket
- Infrared remote control
- Cooling capacity: 0.89 to 2.90 kW (Energy class: A++)
- Heating capacity: 0.9 to 3.60 kW (Energy class: A+)
Dehumidification (OPTIONAL)
- TROTEC TTK Qube dehumidifier with condensate drainage duct installation
Photos are for illustrative purposes only. Delivery and unloading charged separately depending on destination.
